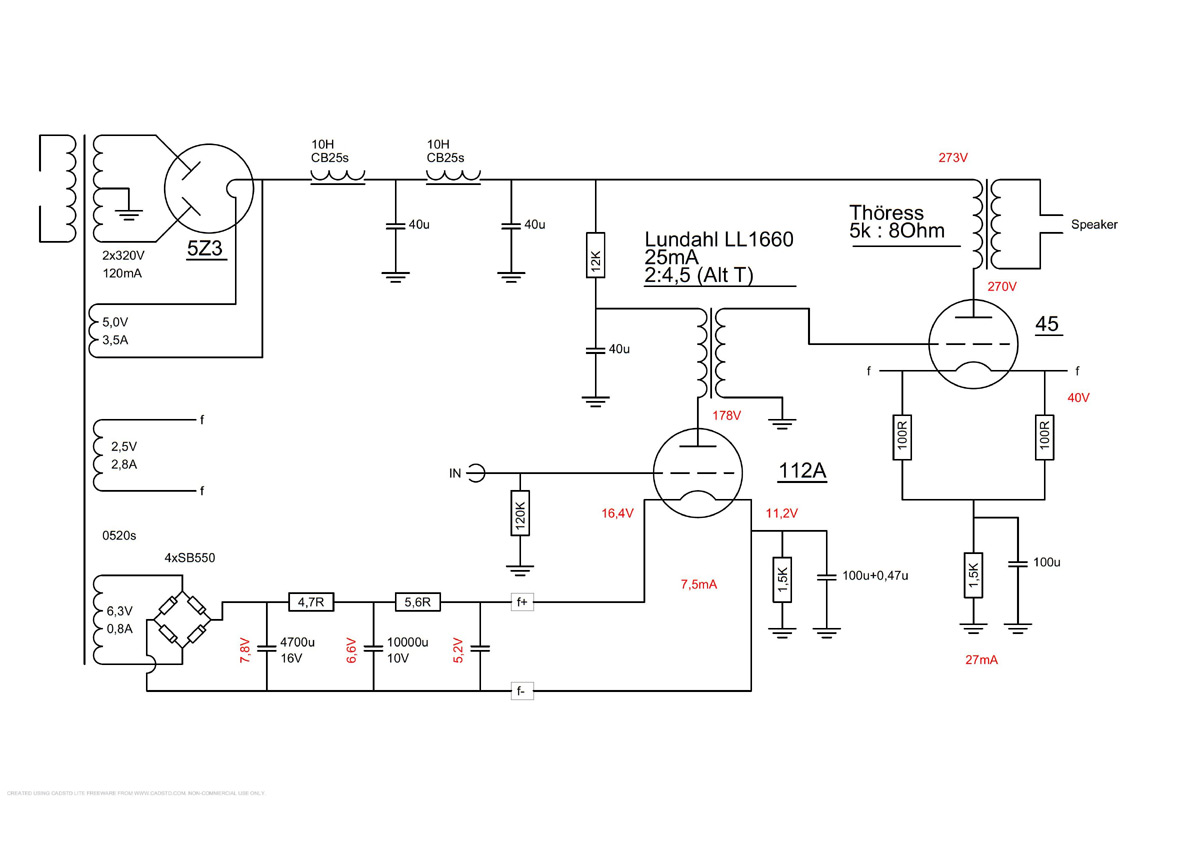

Tube Power Amp Schematic of Single-Ended Power-Amp with 112A/45


The best Capacitor is NO Capacitor! That’s why there is a Lundahl-Interstage-Transformer between the Driver-Stage and the Power-Triode 45. The housings and the Mains-Transformers are designed for the use of different Rectifier- and Driver-Tubes. Also used: Thöress Transformer.

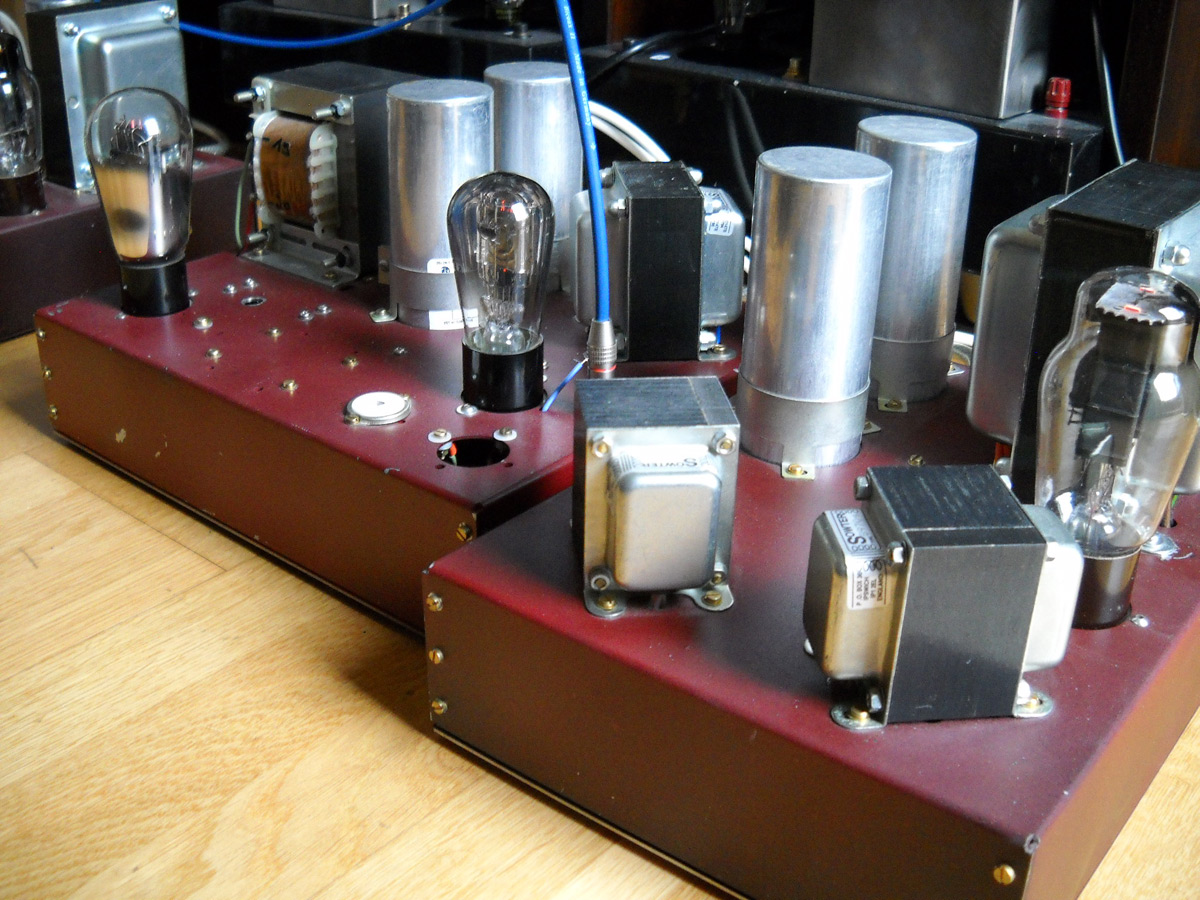

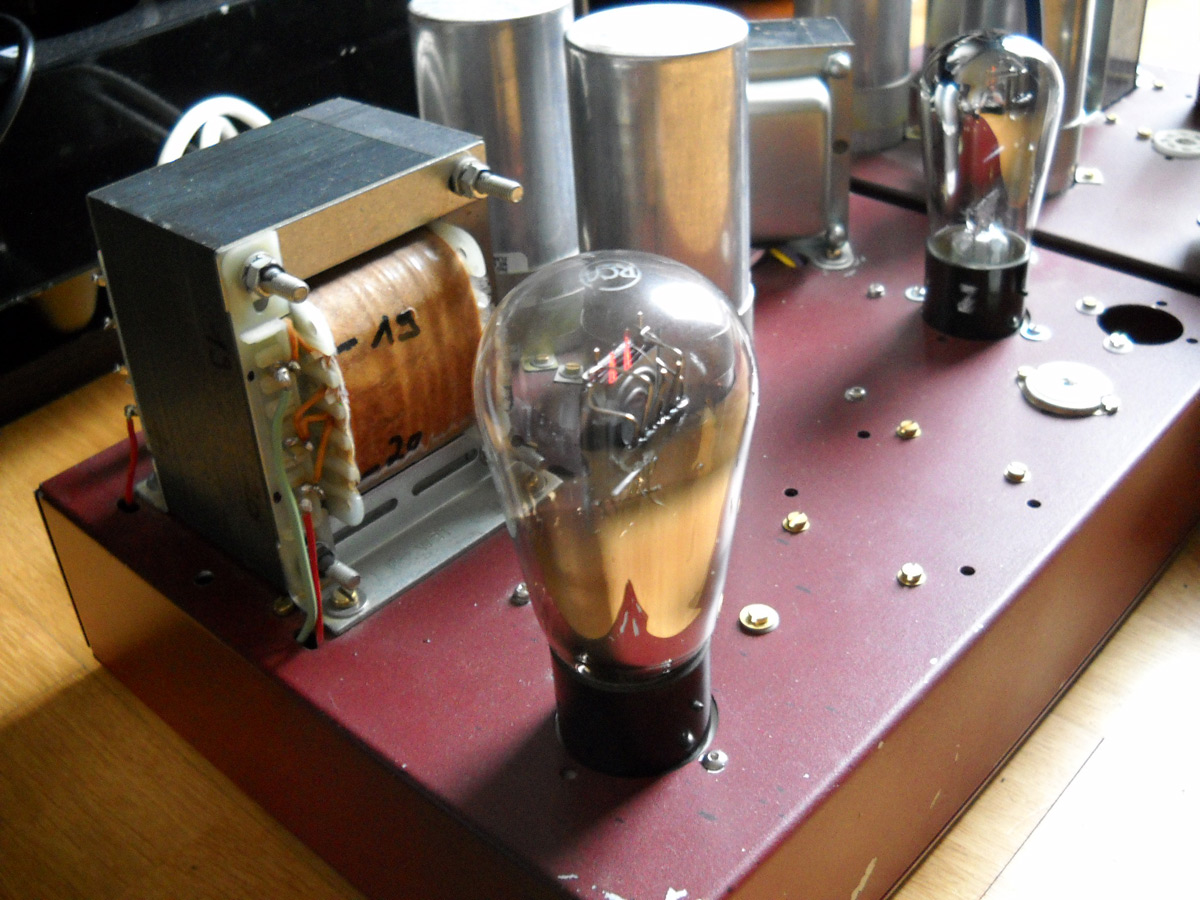

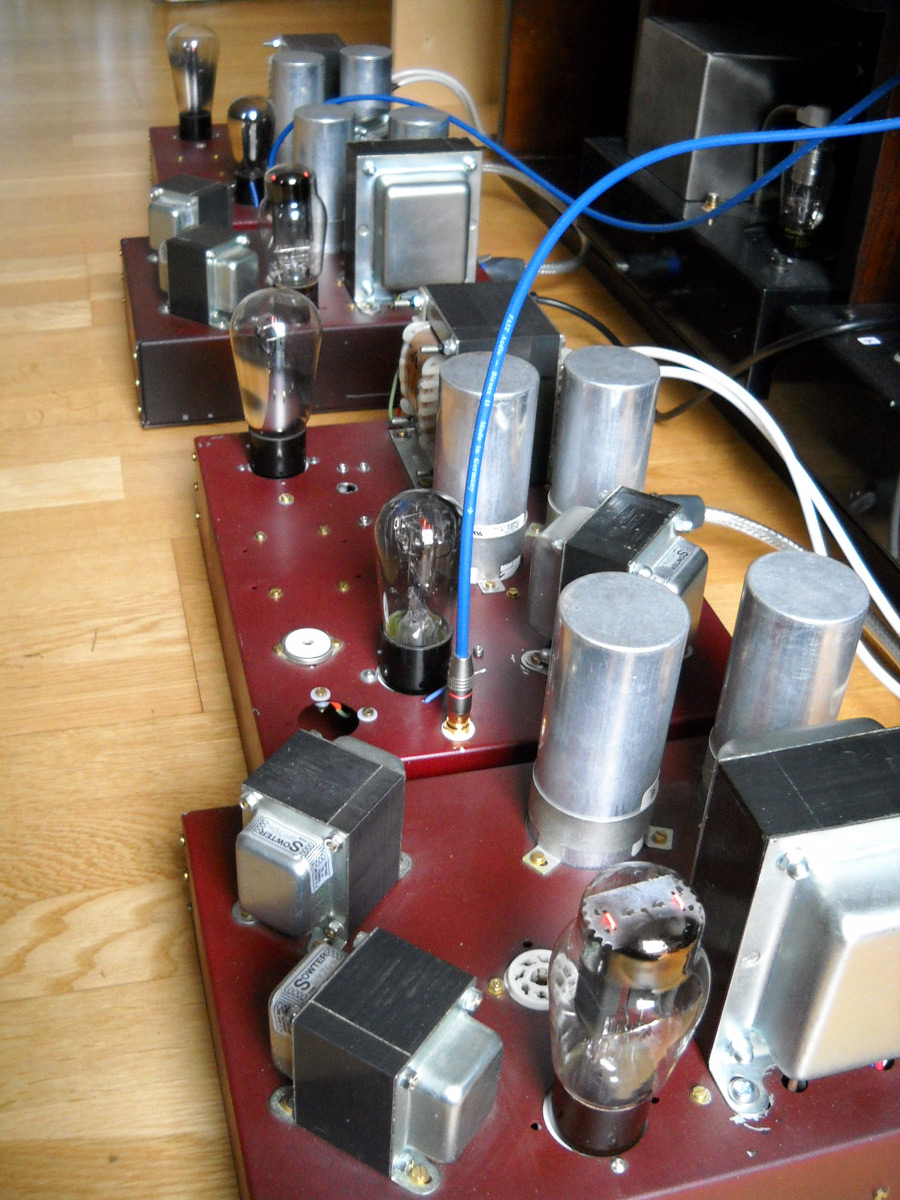

Single-Ended Power-Amp with 112A/45 - Picture 1 Single-Ended Power-Amp with 112A/45 - Picture 2 Single-Ended Power-Amp with 112A/45 - Picture 3 Single-Ended Power-Amp with 112A/45 - Electronic Schematic
