300B/310A Tube Schematic of Power-Amp with Partridge-Transformers


Here comes a Poweramp based on the L’Audiophile 300B with Western-Electric 310A Pentode-Drivers and the old Partridge Transformers. The original tube amp schematic has a feedback loop, though the amp sounds very clear without it – but I think there will be a place for a 3K-resistor and a switch to test it …

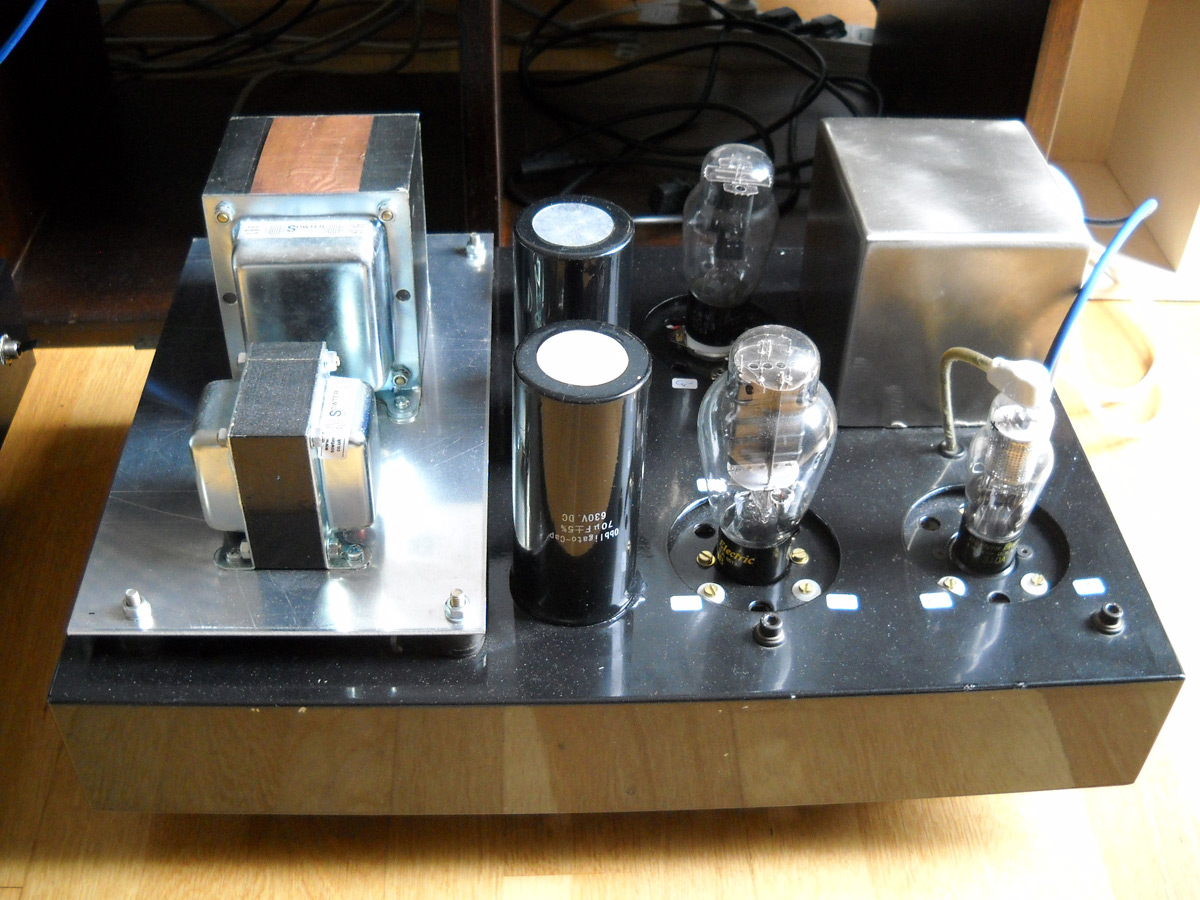

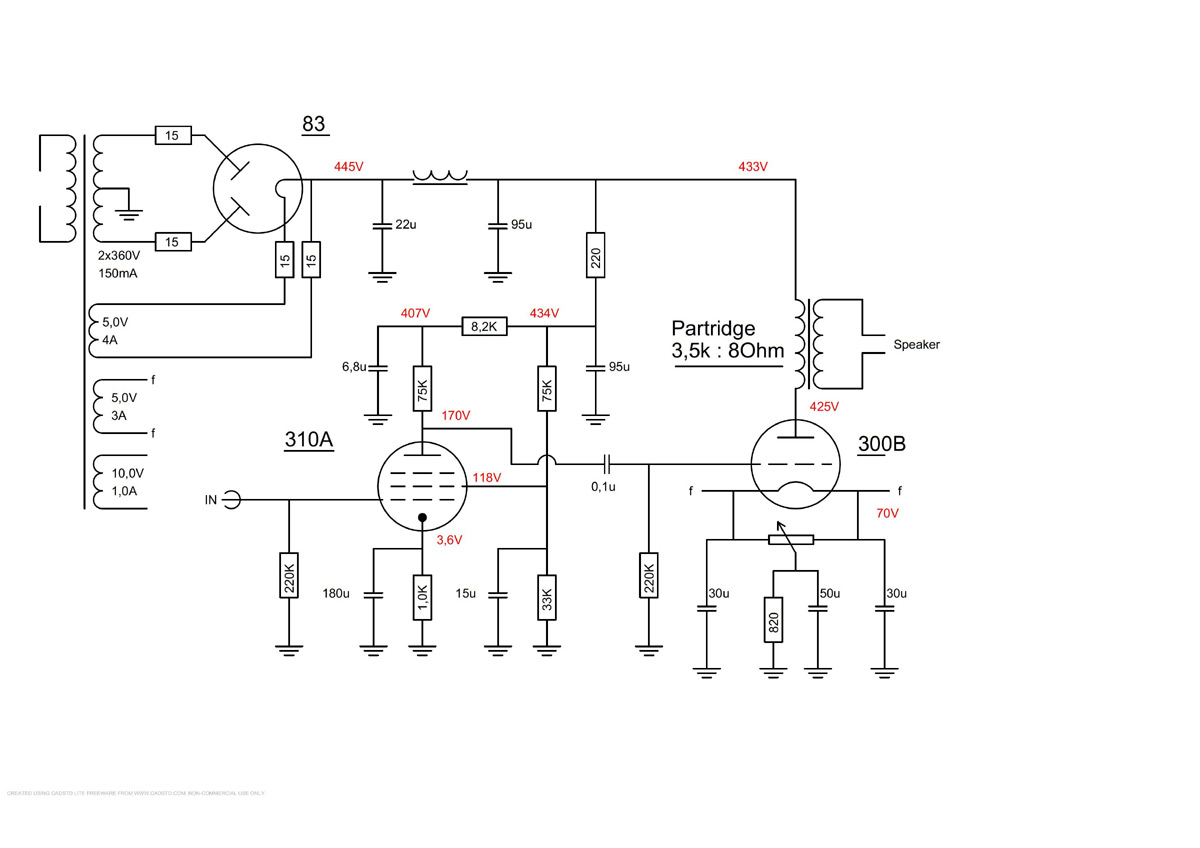

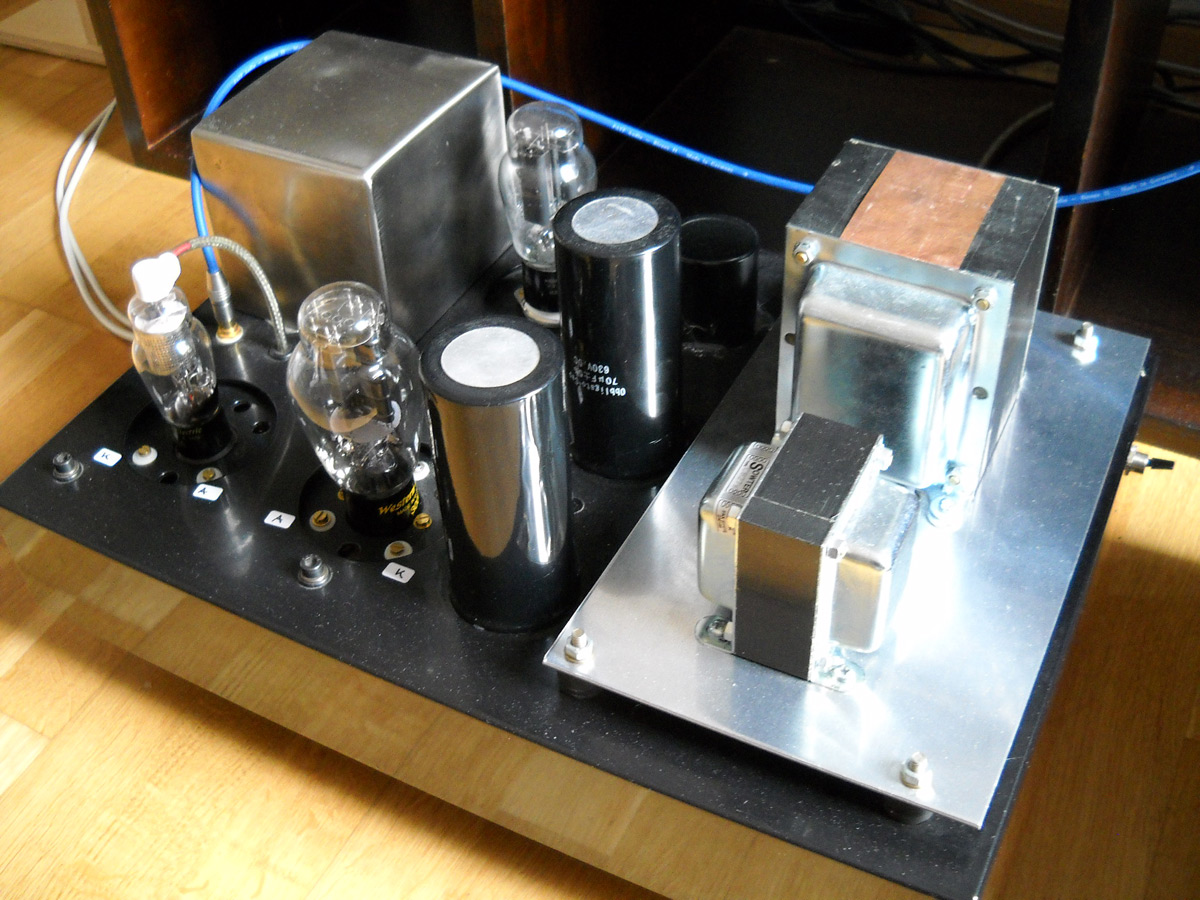

Power-Amp with 300B/310A and Partridge-Transformers - Picture 1 Power-Amp with 300B/310A and Partridge-Transformers - Picture 2 Power-Amp with 300B/310A and Partridge-Transformers - Picture 3 Power-Amp with 300B/310A and Partridge-Transformers - Picture 4 Power-Amp with 300B/310A and Partridge-Transformers - Electronic Schematic
